Grilletes de cadena con pasador de tornillo tipo EE. UU. de marca DAWSON, grillete de anclaje tipo perno de acero forjado
 - Dawson Group Ltd. - Fabricante, fábrica de proveedores de China



ARTÍCULO NO	Medida nominal	Límite de carga de trabajo	Dimensiones (mm)										Peso cada uno
	(en.)	(montones)	A	B	C	D	E	F	G	H	I	M	(kg)
DG-CS0832	1/4	1/2	11.9	7.85	6.35	6.35	24.6	15.5	22.4	40.4	4.85	35.1	0.05
DG-CS1032	5/16	3/4	13.5	9.65	7.85	7.85	29.5	19.1	26.2	48.5	5.60	42.2	0.08
DG-CS1232	3/8	1	16.8	11.2	9.65	9.65	35.8	23.1	31.8	58.5	6.35	51.5	0.13
DG-CS1432	7/16	1-1/2	19.1	12.7	11.2	11.2	41.4	26.9	36.6	67.5	7.85	60.5	0.20
DG-CS1632	1/2	2	20.6	16.0	12.7	12.7	46.0	30.2	41.4	77.0	9.65	68.5	0.27
DG-CS2032	5/8	3-1/4	26.9	19.1	15.7	16.0	58.5	38.1	51.0	95.5	11.2	85.0	0.57
DG-CS2432	3/4	4-3/4	31.8	22.4	20.6	19.1	70.0	46.0	60.5	115	12.7	101	1.20
DG-CS2832	7/8	6-1/2	36.6	25.4	24.6	22.4	81.0	53.0	71.5	135	12.7	114	1.43
DG-CS3232	1	8-1/2	42.9	28.7	25.4	25.4	93.5	60.5	81.0	151	14.2	129	2.15
DG-CS3632	1-1/8	9-1/2	46.0	31.8	31.8	28.7	103	68.5	91.0	172	16.0	142	3.06
DG-CS4032	1-1/4	12	51.5	35.1	35.1	31.8	115	76.0	100	191	17.5	156	4.11
DG-CS4432	1-3/8	13-1/2	57.0	38.1	38.1	35.1	127	84.0	111	210	19.1	174	5.28
DG-CS4832	1-1/2	17	60.5	41.4	41.1	38.1	137	92.0	122	230	20.6	187	7.23
DG-CS5632	1-3/4	25	73.0	51.0	54.0	44.5	162	106	146	279	25.4	231	12.1
DG-CS6432	2	35	82.5	57.0	51.0	51.0	184	122	172	312	31.0	263	19.2
DG-CS8032	2-1/2	55	105	70.0	66.5	66.5	238	145	203	377	35.1	330	32.5



ARTÍCULO NO	Nominal  Tamaño	Laboral  Carga  Límite	Dimensiones (mm)									Peso  Cada
	(en.)	(montones)	A	B	C	D	E	F	G	H	I	(kg)
DG-BCS0832	1/4	1/2	11.9	7.85	6.35	15.5	19.1	40.4	24.6	39.6	6.35	0.06
DG-BCS1032	5/16	3/4	13.5	9.65	7.85	19.1	25.4	48.5	29.5	46.2	7.85	0.10
DG-BCS1232	3/8	1	16.8	11.2	9.65	23.1	31.0	58.5	35.8	55.0	9.65	0.15
DG-BCS1432	7/16	1-1/2	19.1	12.7	11.2	26.9	36.1	67.5	41.1	63.5	11.2	0.22
DG-BCS1632	1/2	2	20.6	16.0	12.7	30.2	41.4	77.0	46.0	71.0	12.7	0.34
DG-BCS2032	5/8	3-1/4	26.9	19.1	16.0	38.1	51.0	95.5	58.5	89.5	16.0	0.67
DG-BCS2432	3/4	4-3/4	31.8	22.4	19.1	46.0	60.5	115	70.0	103	20.6	1.14
DG-BCS2832	7/8	6-1/2	36.6	25.4	22.4	53.0	71.5	135	81.0	120	24.6	1.74
DG-BCS3232	1	8-1/2	42.9	28.7	25.4	60.5	81.0	151	93.5	135	25.4	2.52
DG-BCS3632	1-1/8	9-1/2	46.0	31.8	28.7	68.5	91.0	172	103	150	31.8	3.45
DG-BCS4032	1-1/4	12	51.5	35.1	31.8	76.0	100	191	115	165	35.1	4.90
DG-BCS4432	1-3/8	13-1/2	57.0	38.1	35.1	84.0	111	210	127	183	38.1	6.24
DG-BCS4832	1-1/2	17	60.5	41.4	38.1	92.0	122	230	137	196	41.1	8.39
DG-BCS5632	1-3/4	25	73.0	51.0	44.5	106	146	279	162	230	54.0	14.2
DG-BCS6432	2	35	82.5	57.0	51.0	122	172	312	184	264	51.0	21.2
DG-BCS8032	2-1/2	55	105	70.0	66.5	145	203	377	238	344	66.5	38.6
DG-BCS9632	3	85	127	82.5	76.0	165	216	429	279	419	89.0	56



ARTÍCULO NO	Medida nominal	Límite de carga de trabajo	Dimensiones (mm)											Peso cada uno
	(en.)	(montones)	A	B	C	D	E	F	G	H	I	M	N	(kg)
DG-AS0632	3/16	1/3	9.65	6.35	22.4	4.85	15.2	14.2	24.9	37.3	4.06	28.4	4.85	0.03
DG-AS0832	1/4	1/2	11.9	7.85	28.7	6.35	19.8	15.5	32.5	46.7	4.85	35.1	6.35	0.05
DG-AS1032	5/16	3/4	13.5	9.65	31.0	7.85	21.3	19.1	37.3	53.0	5.60	42.2	7.85	0.09
DG-AS1232	3/8	1	16.8	11.2	36.6	9.65	26.2	23.1	45.2	63.0	6.35	51.5	9.65	0.14
DG-AS1432	7/16	1-1/2	19.1	12.7	42.9	11.2	29.5	26.9	51.5	74.0	7.85	60.5	11.2	0.17
DG-AS1632	1/2	2	20.6	16.0	47.8	12.7	33.3	30.2	58.5	83.5	9.65	68.5	12.7	0.33
DG-AS2032	5/8	3-1/4	26.9	19.1	60.5	16.0	42.9	38.1	74.5	106	11.2	85.0	17.5	0.62
DG-AS2432	3/4	4-3/4	31.8	22.4	71.5	19.1	51.0	46.0	89.0	126	12.7	101	20.6	1.07
DG-AS2832	7/8	6-1/2	36.6	25.4	84.0	22.4	58.0	53.0	102	148	12.7	114	24.6	1.64
DG-AS3232	1	8-1/2	42.9	28.7	95.5	25.4	68.5	60.5	119	167	14.2	129	26.9	2.28
DG-AS3632	1-1/8	9-1/2	46.0	31.8	108	29.5	74.0	68.5	131	190	16.0	142	31.8	3.36
DG-AS4032	1-1/4	12	51.5	35.1	119	32.8	92.5	76.0	146	210	17.5	156	35.1	4.31
DG-AS4432	1-3/8	13-1/2	57.0	38.1	133	36.1	92.0	84.0	162	233	19.1	174	38.1	6.14
DG-AS4832	1-1/2	17	60.5	41.4	146	39.1	98.5	92.0	175	254	20.6	187	41.1	7.80
DG-AS5632	1-3/4	25	73.0	51.0	178	46.7	127	106	225	313	25.4	231	57.0	12.6
DG-AS6432	2	35	82.5	57.0	197	53.0	146	122	253	348	31.0	263	61.0	20.4
DG-AS8032	2-1/2	55	105	70.0	267	69.0	184	145	327	453	35.1	330	79.5	38.9



ARTÍCULO NO	Nominal  Tamaño	Laboral  Carga  Límite	Dimensiones (mm)									Peso  Cada
	(en.)	(montones)	A	B	C	D	E	F	G	H	I	(kg)
DG-BAS0632	3/16	1/3	9.65	6.35	22.4	4.85	15.2	14.2	37.2	24.9	4.85	0.03
DG-BAS0832	1/4	1/2	11.9	7.85	28.7	6.35	19.8	15.5	46.7	32.5	6.35	0.05
DG-BAS1032	5/16	3/4	13.5	9.65	31.0	7.85	21.3	19.1	53.0	37.3	7.85	0.10
DG-BAS1232	3/8	1	16.8	11.2	36.6	9.65	26.2	23.1	63.0	45.2	9.65	0.15
DG-BAS1432	7/16	1-1/2	19.1	12.7	42.9	11.2	29.5	26.9	74.0	51.5	11.2	0.22
DG-BAS1632	1/2	2	20.6	16.0	47.8	12.7	33.3	30.2	83.5	58.5	12.7	0.36
DG-BAS2032	5/8	3-1/4	26.9	19.1	60.5	16.0	42.9	38.1	106	74.5	17.5	0.76
DG-BAS2432	3/4	4-3/4	31.8	22.4	71.5	19.1	51.0	46.0	126	89.0	20.6	1.23
DG-BAS2832	7/8	6-1/2	36.6	25.4	84.0	22.4	58.0	53.0	148	102	24.6	1.79
DG-BAS3232	1	8-1/2	42.9	28.7	95.5	25.4	68.5	60.5	167	119	26.9	2.57
DG-BAS3632	1-1/8	9-1/2	46.0	31.8	108	28.7	74.0	68.5	190	131	31.8	3.75
DG-BAS4032	1-1/4	12	51.5	35.1	119	31.8	82.5	76.0	210	146	35.1	5.31
DG-BAS4432	1-3/8	13-1/2	57.0	38.1	133	35.1	92.0	84.0	233	162	38.1	7.18
DG-BAS4832	1-1/2	17	60.5	41.4	146	38.1	98.5	92.0	254	175	41.1	9.43
DG-BAS5632	1-3/4	25	73.0	51.0	178	44.5	127	106	313	225	57.0	15.4
DG-BAS6432	2	35	82.5	57.0	197	51.0	146	122	348	253	61.0	23.7
DG-BAS8032	2-1/2	55	105	70.0	267	66.5	184	145	453	327	79.5	44.6
DG-BAS9632	3	85	127	82.5	330	76.0	200	165	546	365	92.0	70
DG-BAS11232	3-1/2	120	133	95.5	372	92.0	229	203	626	419	105	120
DG-BAS12832	4	150	140	108	368	104	254	229	653	468	116	153

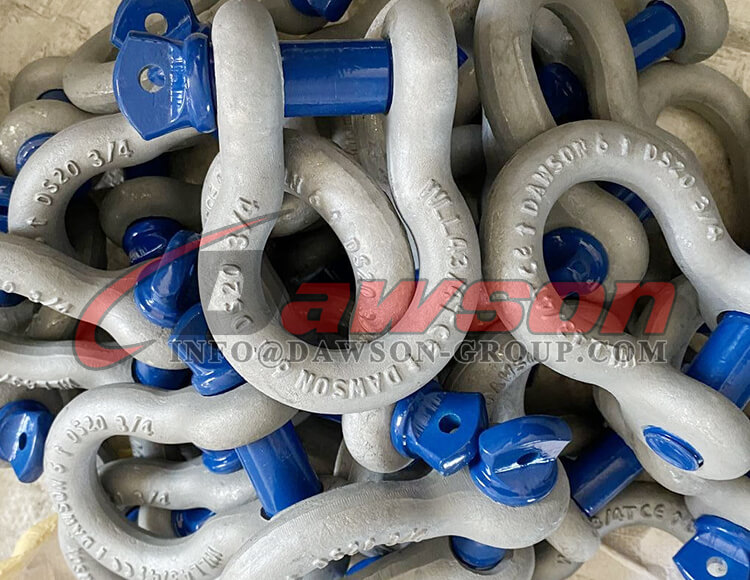

Productos mostrar:

Sistema de Gestión de Calidad Dawson:

Forja Dawson:

Aplicación del grillete de cadena tipo EE. UU.:

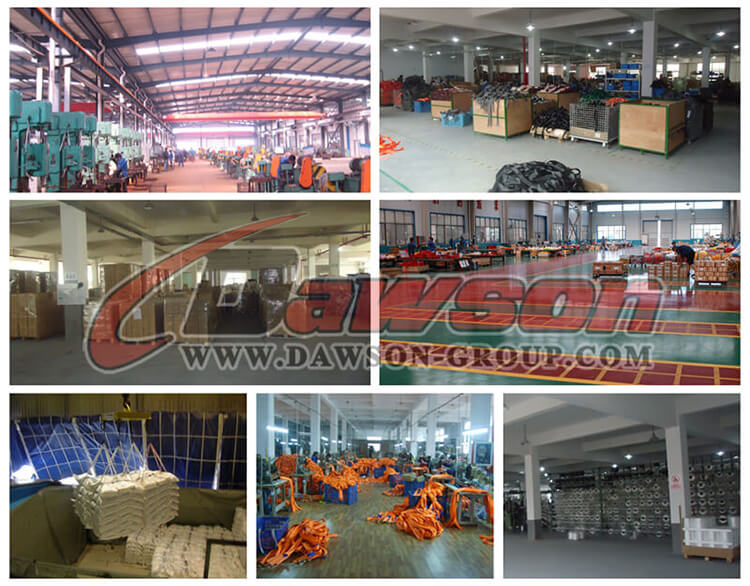

Paquete y espectáculo de fábrica:
